动作库试点 · Hype Boy 舞蹈版 → 52 原子动作单元判读页

链路档案

素材: B站 BV1Hg411r7jU (1080p/177.9s/4266fr@23.976fps) → TransNetV2 48物理镜 → GVHMR 世界系 SMPL (相机解耦+跟踪conf) → 镜内能量分段 → 52 单元

库: /data/workspace/motion-db/db/motion_db.jsonl (索引) + units/*.npz (SMPL 全参逐单元)

⚠ 节拍轴=UNVERIFIED (音画全局对齐两法不一致); SMPL 提取为主跟踪目标(多人镜取最高conf目标), 部分镜主目标可能切换

判读方式: 勾情绪/效果 + 备注, 或直接回票串 (单元ID:标签). 不判读也行——先看库形态对不对.

单元帧条(5帧: 起中1中2中3末)ID时长运动指标主导关节组跟踪质量判读槽(emotion/effect/note)

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

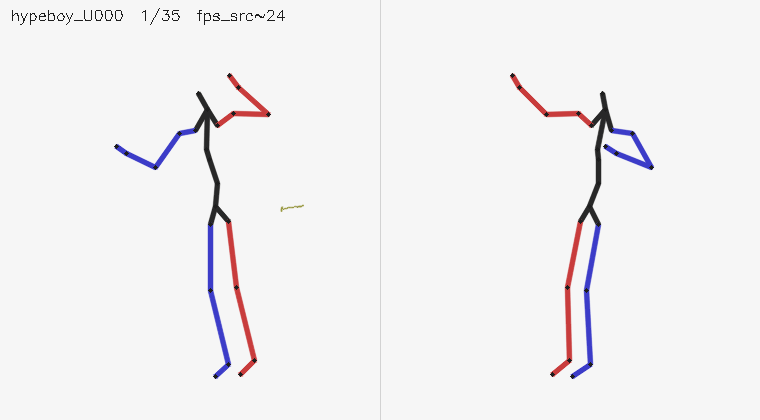

 hypeboy_U000
shot0
0.0s		 1.46s E=0.388
disp=0.093m
yaw=2182.8°		 arm_R / arm_L / leg_L conf=0.999

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U001
shot0
1.96s		 3.754s E=0.596
disp=0.361m
yaw=2851.3°		 leg_R / leg_L / arm_R conf=1.0

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

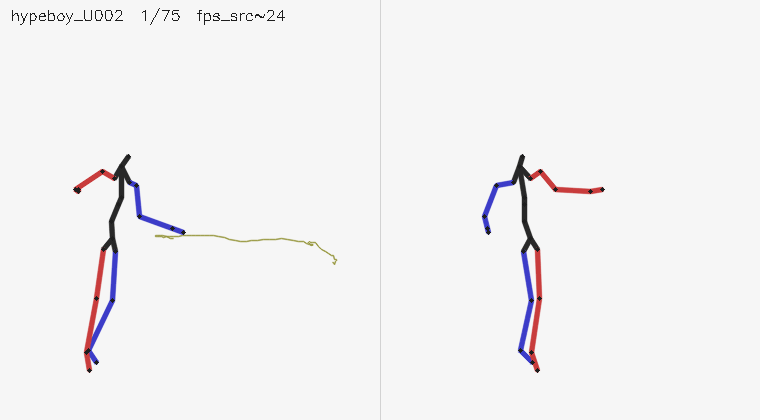

 hypeboy_U002
shot1
5.714s		 3.128s E=0.997
disp=1.282m
yaw=377.1°		 arm_L / arm_R / leg_R conf=0.902

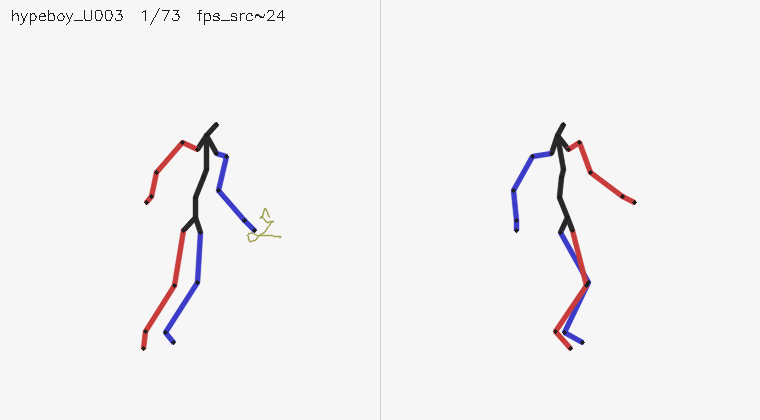

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U003
shot2
8.842s		 3.045s E=0.867
disp=0.174m
yaw=517.6°		 arm_L / arm_R / leg_L conf=0.979

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

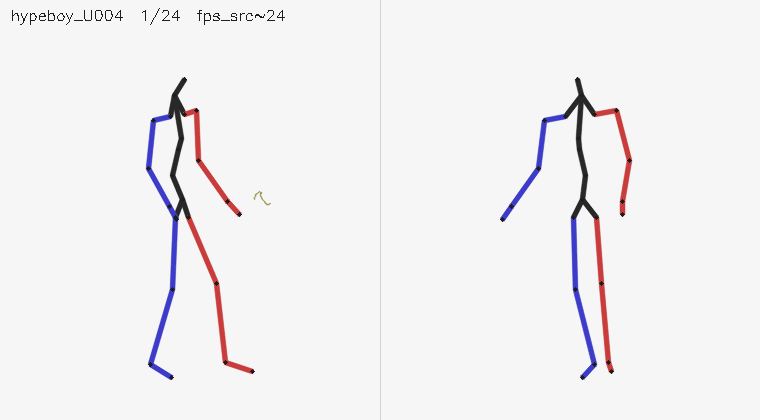

 hypeboy_U004
shot2
12.429s		 1.001s E=0.937
disp=0.08m
yaw=862.3°		 arm_R / arm_L / leg_L conf=0.836

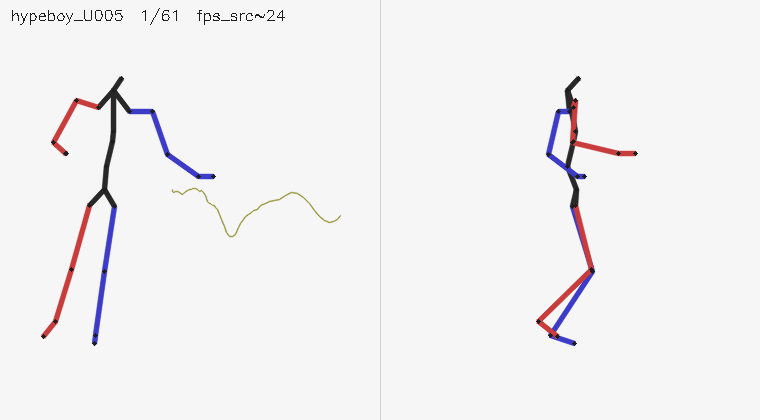

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U005
shot4
17.643s		 2.544s E=1.417
disp=0.89m
yaw=1387.8°		 arm_R / arm_L / leg_L conf=0.928

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

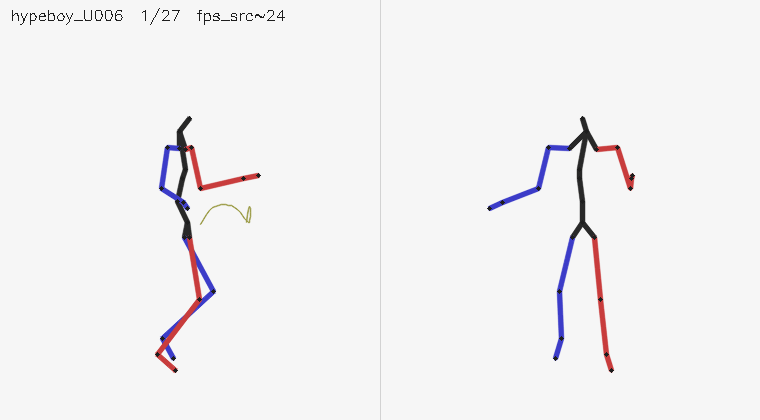

 hypeboy_U006
shot5
20.187s		 1.126s E=1.338
disp=0.274m
yaw=1528.0°		 arm_R / arm_L / leg_L conf=0.267

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

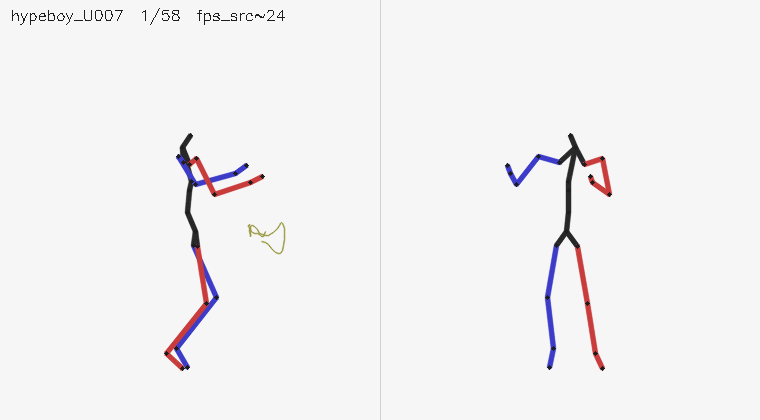

 hypeboy_U007
shot6
21.313s		 2.419s E=1.683
disp=0.076m
yaw=1480.4°		 arm_R / arm_L / leg_R conf=0.949

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

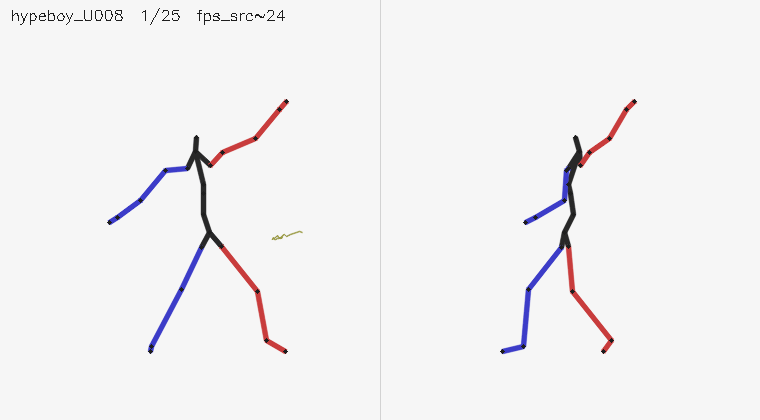

 hypeboy_U008
shot7
23.732s		 1.043s E=1.103
disp=0.154m
yaw=35.2°		 arm_R / arm_L / leg_L conf=0.89

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

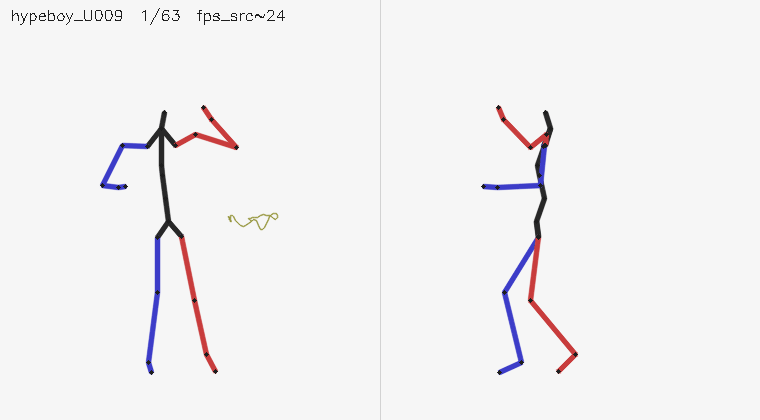

 hypeboy_U009
shot8
24.775s		 2.628s E=1.061
disp=0.173m
yaw=221.6°		 arm_R / arm_L / leg_L conf=0.952

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

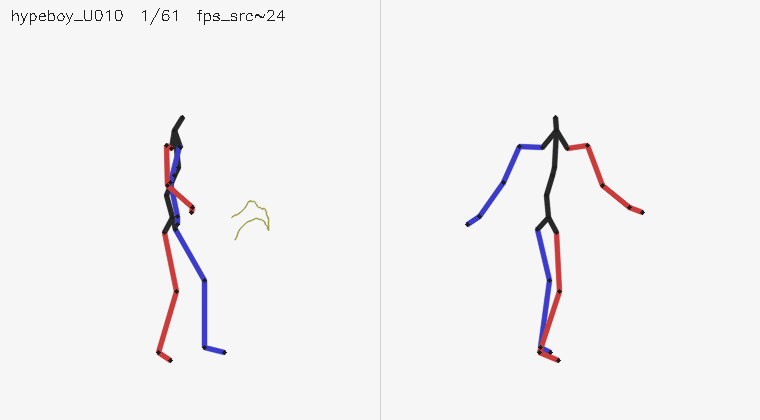

 hypeboy_U010
shot9
27.402s		 2.544s E=1.391
disp=0.374m
yaw=440.4°		 arm_R / arm_L / leg_L conf=0.73

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

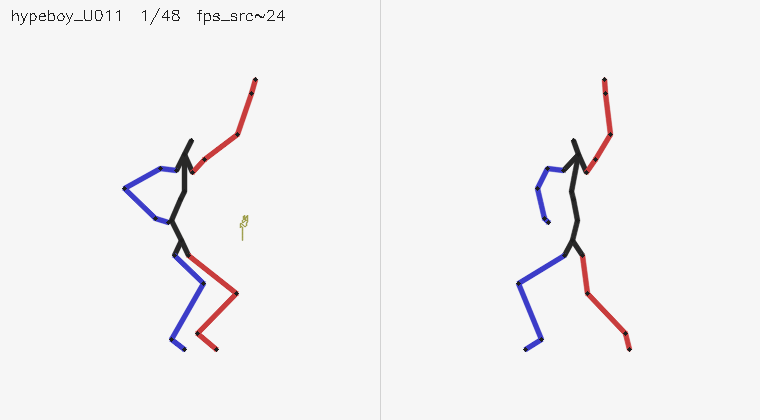

 hypeboy_U011
shot10
29.947s		 2.002s E=1.979
disp=0.133m
yaw=2683.1°		 arm_R / arm_L / leg_L conf=0.751

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

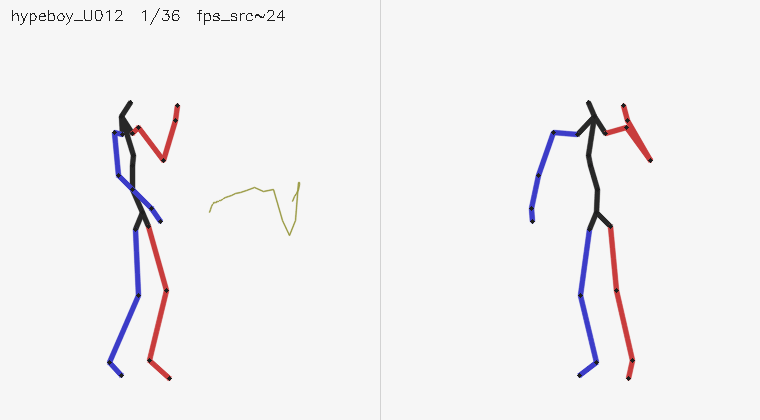

 hypeboy_U012
shot11
31.949s		 1.501s E=1.354
disp=0.516m
yaw=727.6°		 arm_R / arm_L / leg_L conf=0.906

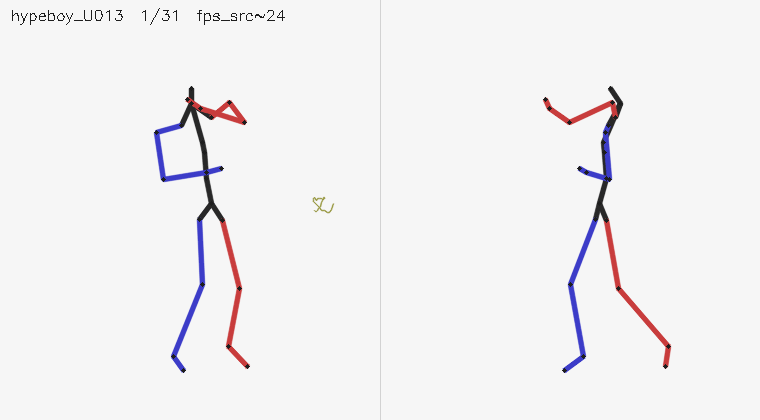

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U013
shot12
33.45s		 1.293s E=1.954
disp=0.165m
yaw=1920.0°		 arm_R / arm_L / leg_R conf=0.872

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U014
shot13
34.743s		 9.593s E=1.102
disp=0.655m
yaw=4513.6°		 arm_R / arm_L / leg_L conf=0.995

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

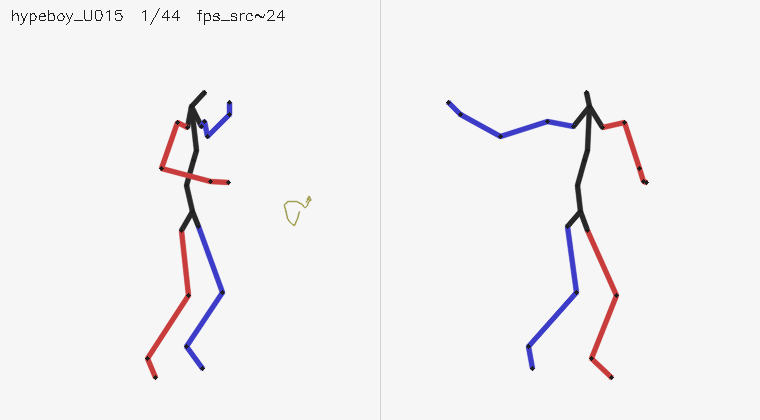

 hypeboy_U015
shot13
44.336s		 1.835s E=1.58
disp=0.099m
yaw=73.8°		 arm_L / arm_R / head conf=0.965

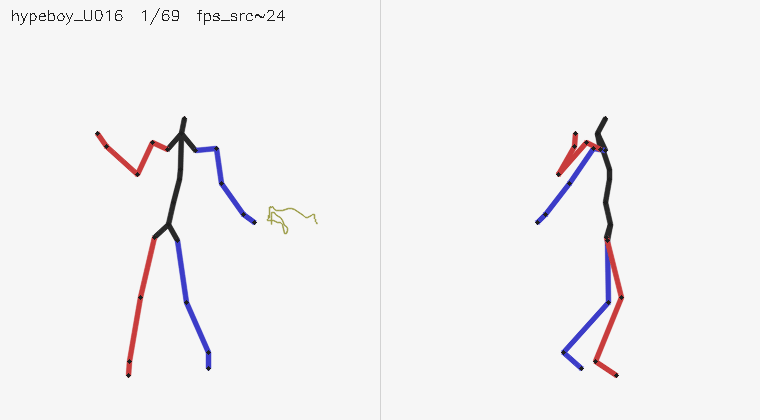

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U016
shot14
46.171s		 2.878s E=1.637
disp=0.56m
yaw=2020.4°		 arm_R / arm_L / leg_L conf=0.94

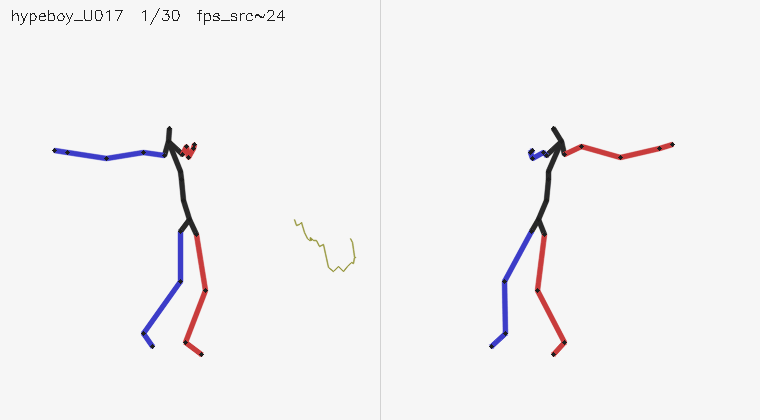

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U017
shot15
49.049s		 1.251s E=1.547
disp=0.394m
yaw=729.4°		 arm_R / arm_L / leg_L conf=0.878

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

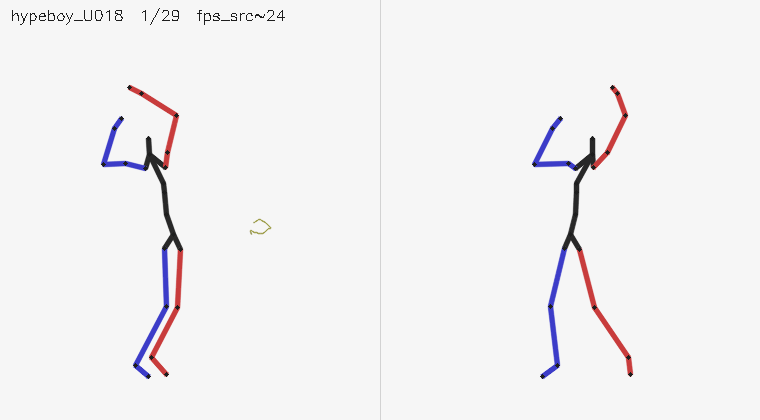

 hypeboy_U018
shot16
50.3s		 1.21s E=1.298
disp=0.073m
yaw=384.1°		 arm_L / arm_R / leg_R conf=0.857

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

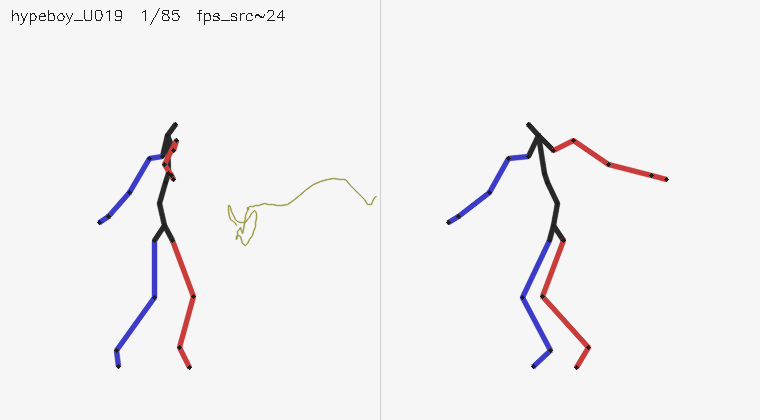

 hypeboy_U019
shot17
51.51s		 3.545s E=1.541
disp=0.931m
yaw=2099.5°		 arm_R / arm_L / leg_R conf=0.926

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

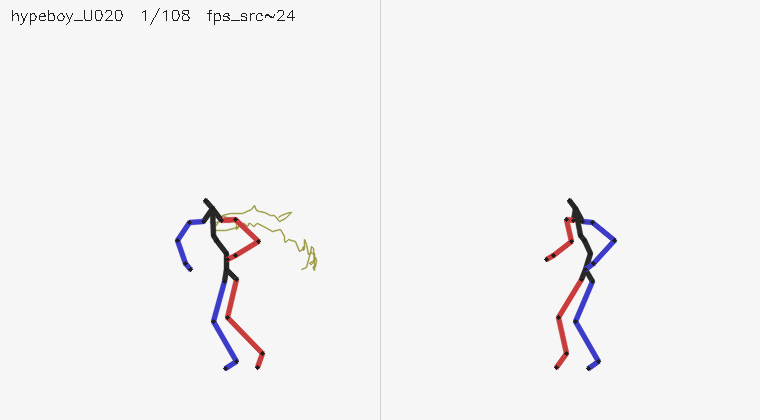

 hypeboy_U020
shot18
55.055s		 13.472s E=1.484
disp=0.564m
yaw=5721.2°		 arm_R / arm_L / head conf=0.988

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

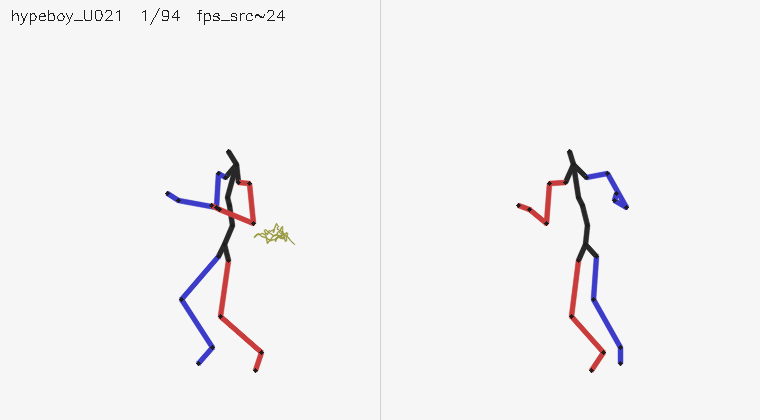

 hypeboy_U021
shot19
68.986s		 7.799s E=0.946
disp=0.298m
yaw=6627.2°		 arm_L / arm_R / leg_R conf=0.974

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

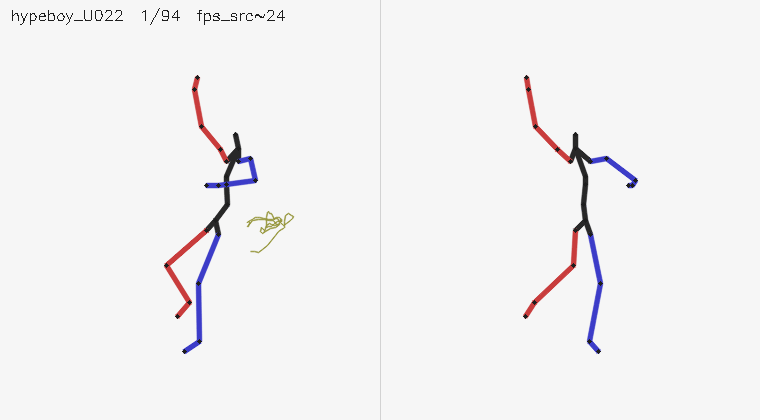

 hypeboy_U022
shot20
76.785s		 7.799s E=1.232
disp=0.383m
yaw=2379.8°		 arm_R / arm_L / leg_R conf=0.96

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

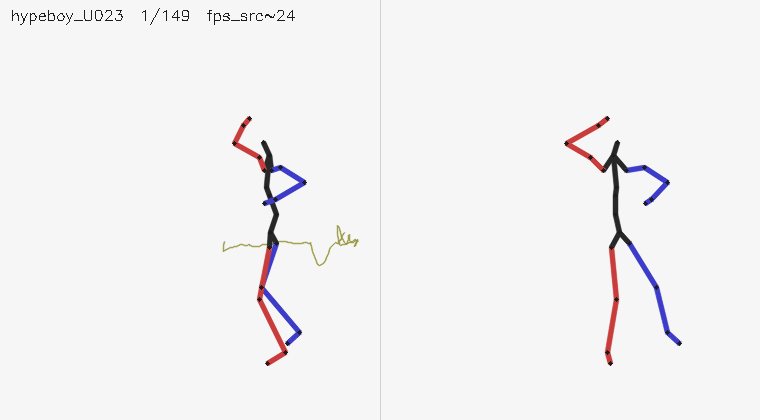

 hypeboy_U023
shot21
84.584s		 6.215s E=1.349
disp=1.333m
yaw=3998.9°		 arm_R / arm_L / leg_L conf=0.898

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

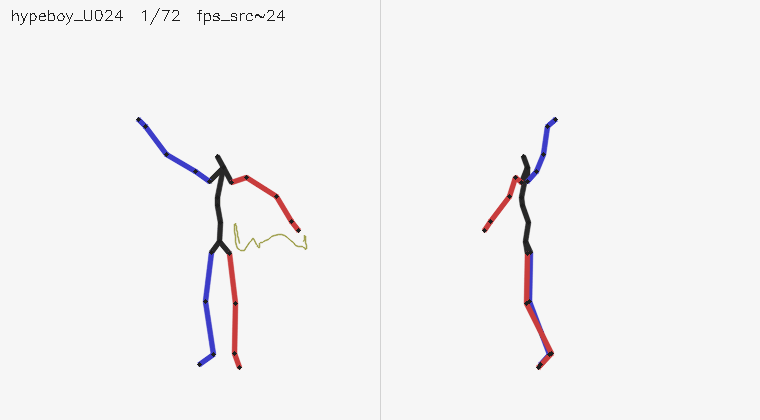

 hypeboy_U024
shot21
90.799s		 3.003s E=1.812
disp=1.053m
yaw=628.5°		 arm_L / arm_R / leg_R conf=0.796

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

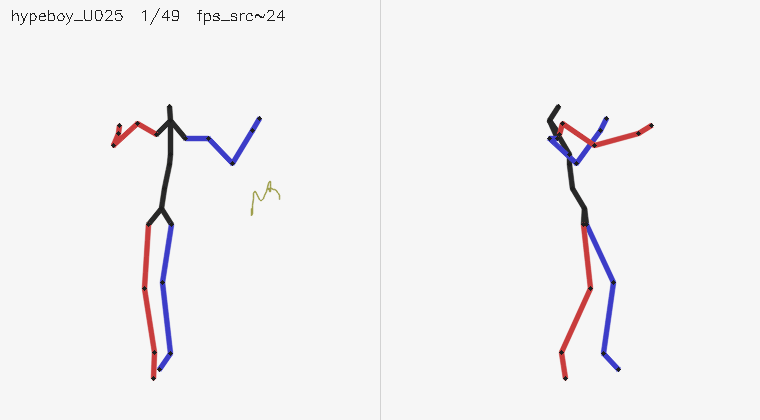

 hypeboy_U025
shot22
93.802s		 2.044s E=1.108
disp=0.162m
yaw=1432.4°		 arm_L / arm_R / leg_R conf=0.924

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

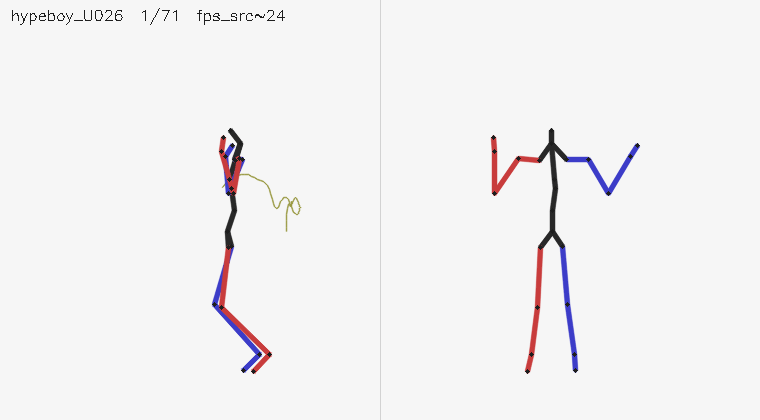

 hypeboy_U026
shot23
95.846s		 2.961s E=1.247
disp=0.473m
yaw=1235.0°		 arm_L / arm_R / leg_R conf=0.688

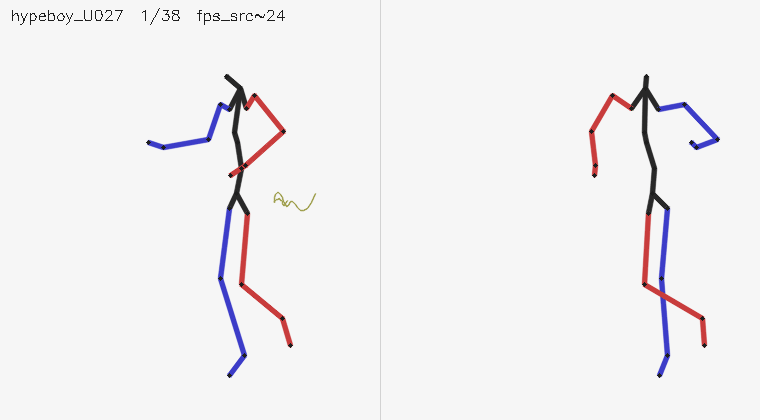

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U027
shot24
98.807s		 1.585s E=1.8
disp=0.689m
yaw=1815.6°		 arm_L / arm_R / leg_L conf=0.694

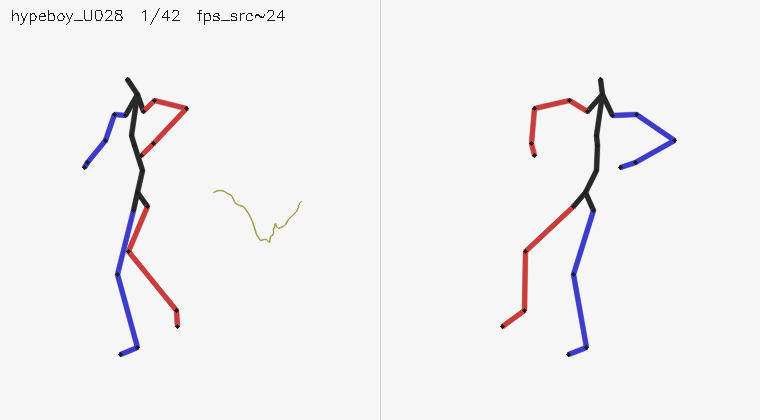

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U028
shot25
100.392s		 1.752s E=1.588
disp=0.486m
yaw=586.9°		 arm_R / arm_L / leg_R conf=0.941

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

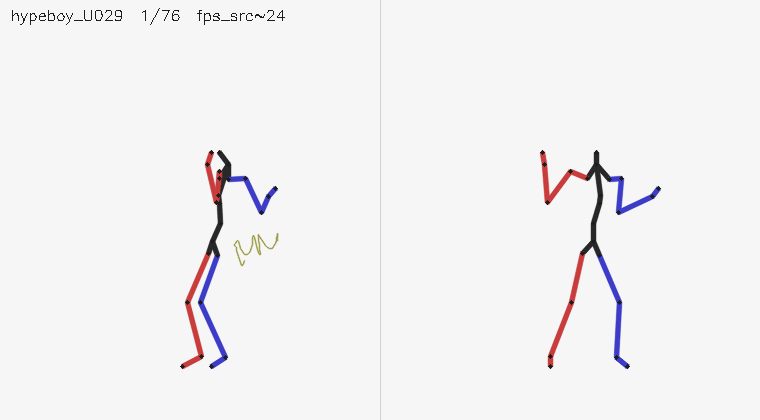

 hypeboy_U029
shot26
102.144s		 3.17s E=1.493
disp=0.249m
yaw=431.8°		 arm_R / arm_L / leg_R conf=0.937

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U030
shot27
106.523s		 5.214s E=1.238
disp=0.6m
yaw=1494.2°		 arm_R / arm_L / leg_R conf=0.997

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

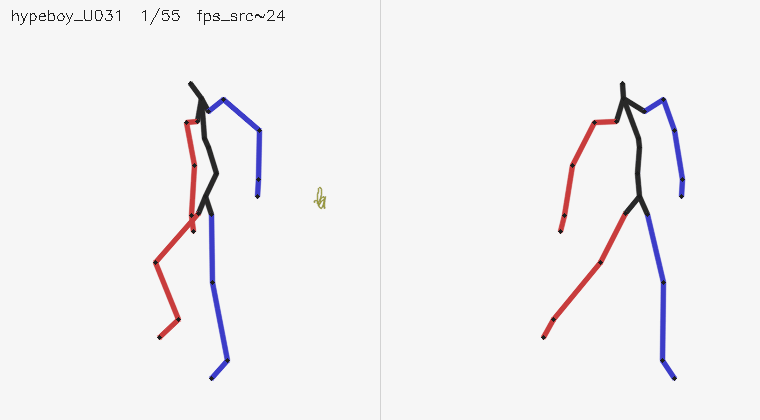

 hypeboy_U031
shot28
111.737s		 2.294s E=1.428
disp=0.302m
yaw=750.3°		 arm_R / arm_L / head conf=0.94

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U032
shot29
114.031s		 3.17s E=1.388
disp=0.489m
yaw=1056.9°		 arm_R / arm_L / leg_R conf=0.984

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

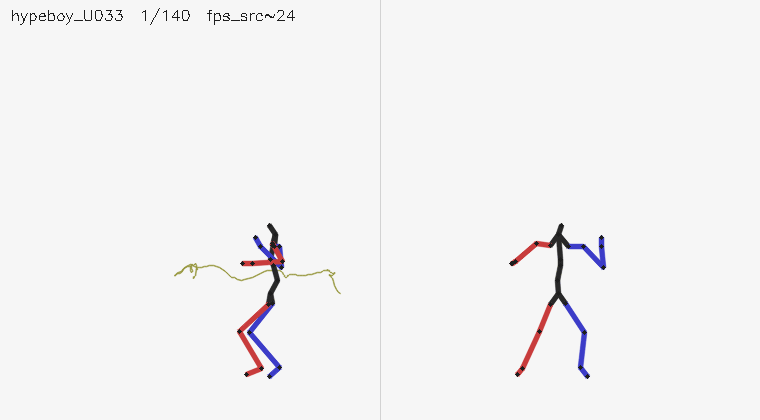

 hypeboy_U033
shot30
117.2s		 5.839s E=1.366
disp=1.407m
yaw=499.5°		 arm_L / arm_R / leg_R conf=0.978

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

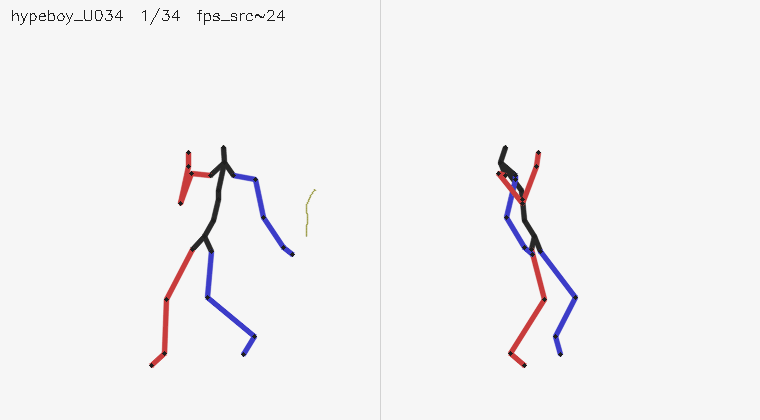

 hypeboy_U034
shot31
123.04s		 1.418s E=1.669
disp=0.344m
yaw=968.4°		 arm_L / arm_R / leg_R conf=0.223

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U035
shot32
124.458s		 1.501s E=1.445
disp=0.222m
yaw=418.6°		 arm_R / arm_L / leg_R conf=0.653

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

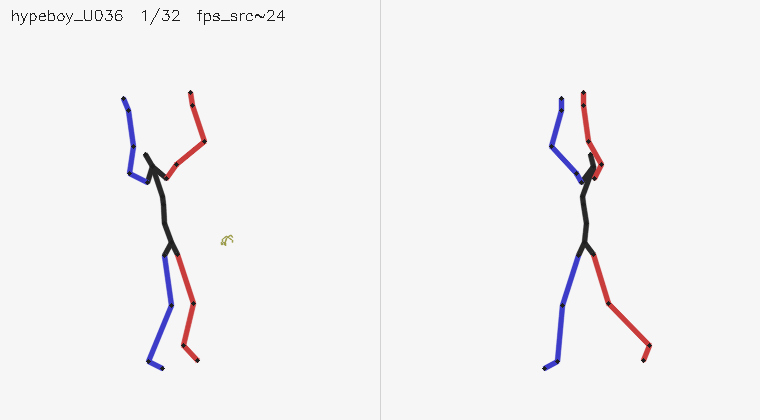

 hypeboy_U036
shot33
125.959s		 1.335s E=1.552
disp=0.277m
yaw=1346.7°		 arm_R / arm_L / head conf=0.728

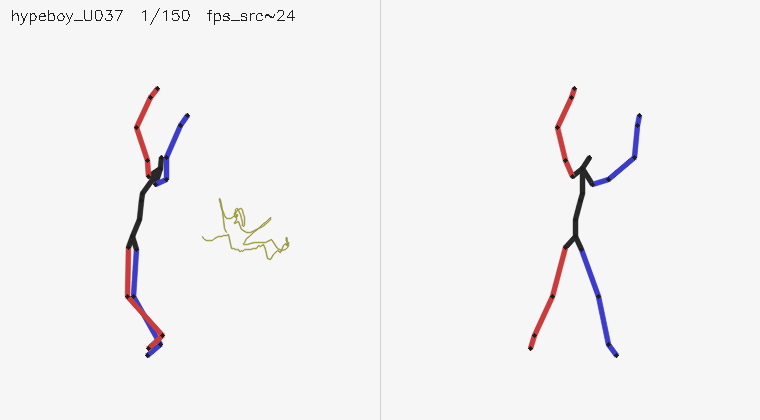

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U037
shot34
127.294s		 6.256s E=1.404
disp=0.483m
yaw=2005.1°		 arm_R / arm_L / leg_R conf=0.964

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

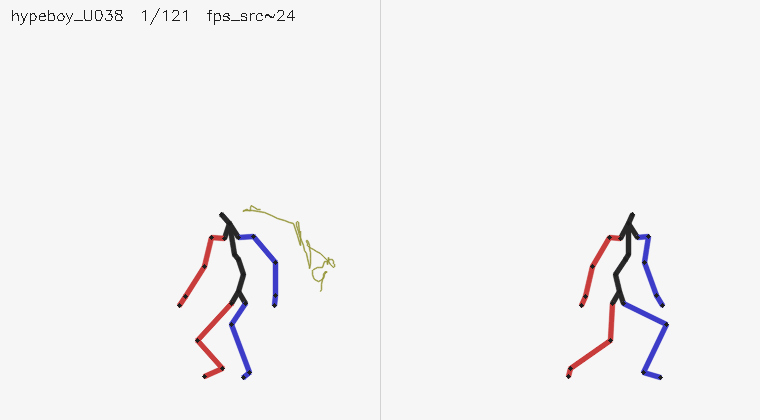

 hypeboy_U038
shot34
133.55s		 5.047s E=1.577
disp=0.888m
yaw=2418.5°		 arm_R / arm_L / leg_L conf=0.954

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U039
shot35
138.597s		 4.963s E=1.073
disp=0.98m
yaw=4306.5°		 arm_R / arm_L / leg_L conf=0.983

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

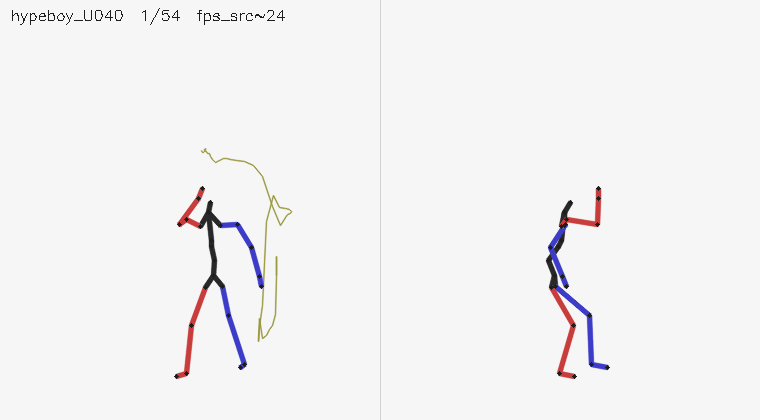

 hypeboy_U040
shot36
143.56s		 2.252s E=2.704
disp=1.216m
yaw=1178.6°		 arm_L / leg_R / arm_R conf=0.906

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U041
shot37
145.812s		 2.169s E=1.446
disp=0.137m
yaw=147.3°		 arm_R / arm_L / leg_R conf=0.951

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

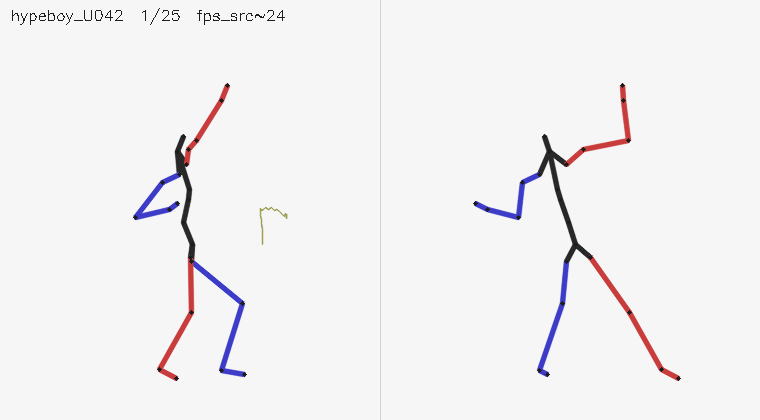

 hypeboy_U042
shot38
147.981s		 1.043s E=1.19
disp=0.212m
yaw=244.4°		 arm_R / arm_L / leg_L conf=0.922

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

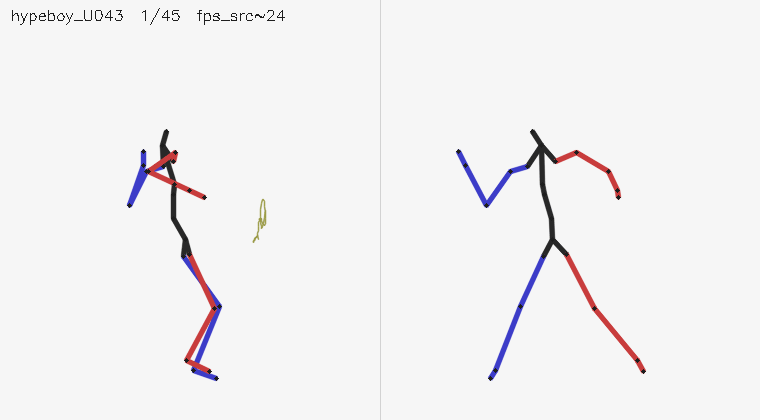

 hypeboy_U043
shot39
149.024s		 1.877s E=1.337
disp=0.18m
yaw=410.5°		 arm_R / arm_L / leg_L conf=0.98

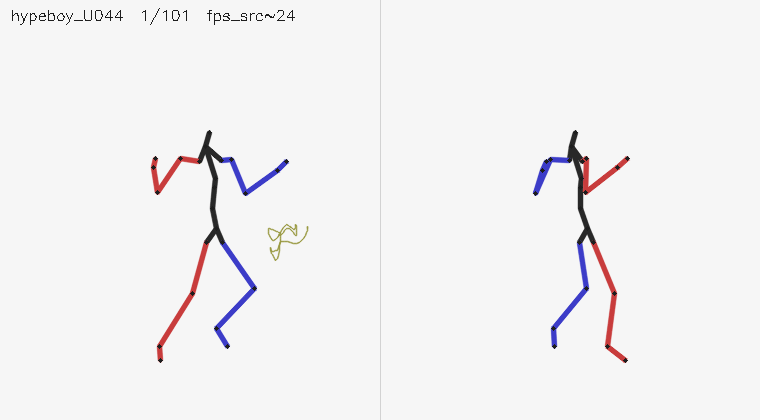

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U044
shot40
150.901s		 4.213s E=1.222
disp=0.183m
yaw=205.8°		 arm_L / arm_R / leg_R conf=0.909

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

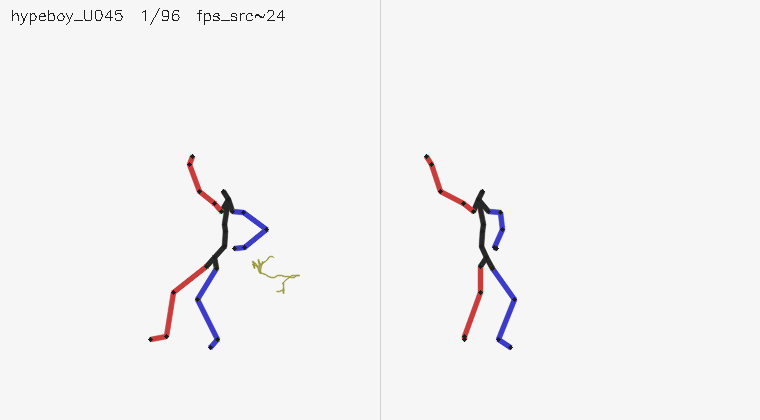

 hypeboy_U045
shot41
155.113s		 4.004s E=1.561
disp=1.58m
yaw=363.3°		 arm_R / arm_L / leg_R conf=0.918

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U046
shot42
159.117s		 2.044s E=1.467
disp=0.187m
yaw=512.4°		 arm_L / arm_R / head conf=0.979

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

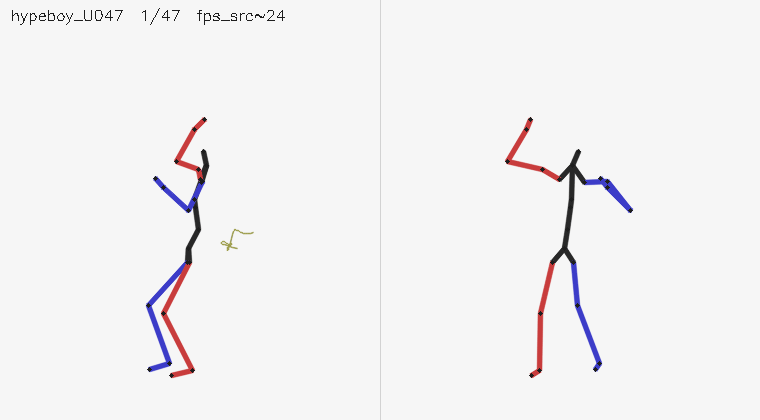

 hypeboy_U047
shot43
161.161s		 1.96s E=1.1
disp=0.182m
yaw=713.2°		 arm_R / arm_L / leg_L conf=0.99

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧

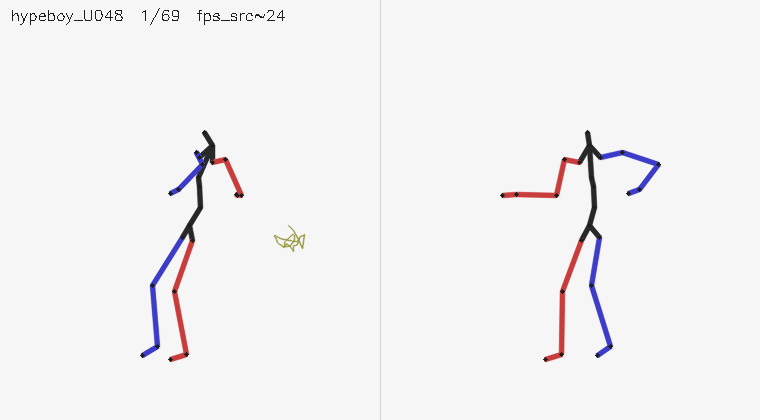

 hypeboy_U048
shot44
163.121s		 2.878s E=1.765
disp=0.1m
yaw=274.6°		 arm_R / arm_L / head conf=0.87

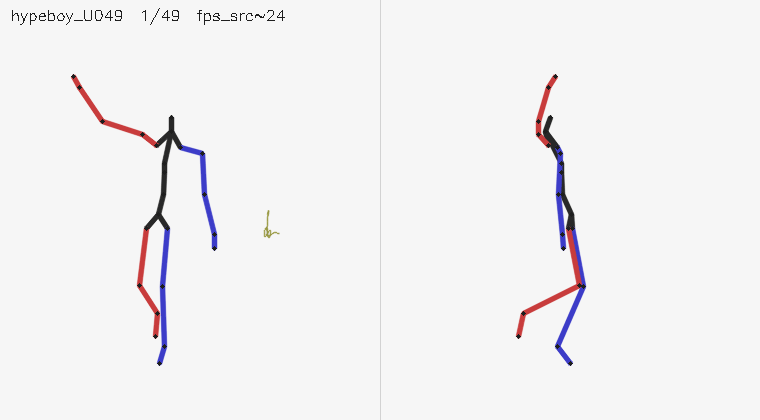

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U049
shot45
165.999s		 2.044s E=1.099
disp=0.484m
yaw=150.5°		 arm_L / arm_R / leg_L conf=0.816

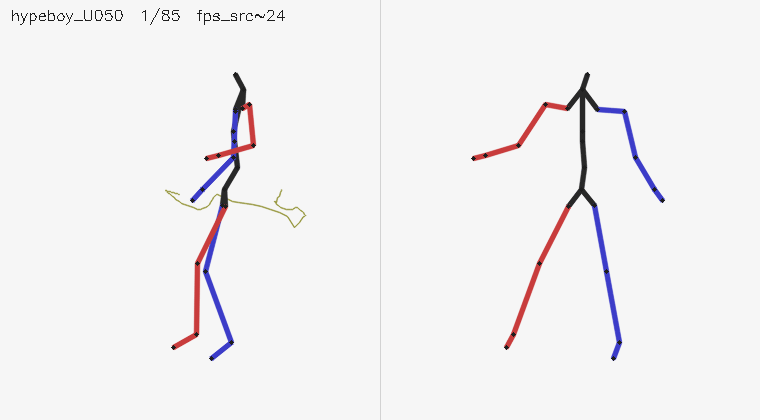

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U050
shot46
168.043s		 3.545s E=1.303
disp=0.549m
yaw=1867.6°		 arm_R / arm_L / head conf=0.998

骨架动作预览(X-Y面|Z-Y面,朝向=动作真实世界朝向) / 下方为原片参考帧
 hypeboy_U051
shot47
171.588s		 3.503s E=0.777
disp=0.344m
yaw=3020.2°		 arm_L / arm_R / leg_L conf=0.997
